First Time F4i Owner Need Help

drobf4i · #1 01-26-2010, 06:20 PM

I just bought an 01 F4i and i need help wiring the headlight,signal light front and back. this is my first f4i any help will be appreciated

akebono · #2 01-28-2010, 10:38 AM

best bet would be to download or find a repair manual online and use the wiring diagrams in there

F4iRider19 · #3 01-29-2010, 06:31 PM

X2 ^ best bet! wiring is kinda a hard thing to explain over a post and would involve ALOT of pics lol. why exactly are you digging into wiring anyways the harness is plug and play, are you installing HID's? or just repairing damage?

F4iRider19 · #4 01-29-2010, 06:36 PM

pardon me the front is plug and play the rears you'll deffinatly need the diagram

randy954rr · #5 01-29-2010, 07:36 PM

Wiring Diagram: Schematic

drobf4i · #6 01-29-2010, 08:02 PM

thank for the diagram but look like im missing the relay for the high beam. are all the relay the same if not where is a good place to find on

randy954rr · #7 01-29-2010, 08:43 PM

Quote:

Originally Posted by drobf4i

thank for the diagram but look like im missing the relay for the high beam. are all the relay the same if not where is a good place to find on

I believe that is just a 20 amp SPST relay, the Green and White wires go to the relay coil, the Blue and Black/Red to the relay switch. You should be able to get one at any Auto parts store. Just make sure it has 4 poles (2 for relay coil and 2 for the switch relay). Of course, a non-Honda one will require you to do a little wire modifications for it to connect.

drobf4i · #8 01-29-2010, 09:16 PM

Quote:

Originally Posted by randy954rr

I believe that is just a 20 amp SPST relay, the Green and White wires go to the relay coil, the Blue and Black/Red to the relay switch. You should be able to get one at any Auto parts store. Just make sure it has 4 poles (2 for relay coil and 2 for the switch relay). Of course, a non-Honda one will require you to do a little wire modifications for it to connect.

do you know off hand what year honda car one might be on.

randy954rr · #9 01-29-2010, 11:36 PM

Quote:

Originally Posted by drobf4i

do you know off hand what year honda car one might be on.

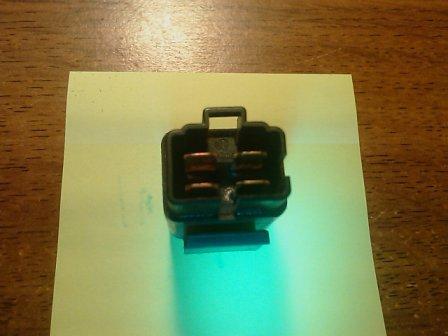

Sorry, no idea on that one. Are you sure it is gone? It attaches to the wiring harness at the front, small, only about an 1" across, should say "OMRON G8MS-H68 12V 20A" on it. It's used on a gazillion Hondas, so a shop might have one in stock if you do need one. Here's a couple of pictures.

(Luckily, my bike happens to be in the living room with all the plastics off so it was easy to get to).

drobf4i · #10 01-30-2010, 06:54 AM

Its missing, it was stolen bike so they trash the wiiring. I got most of it fix but I can't find a relay for it I was hoping to find one off a honda car. I'm also missing the headlights socket is the blub h7 or h4. Can I use a car headlight socket as long as it is h7 or h4
